Investigation One Summary – Lab Goals

In Investigation One, you investigated pulley systems and forces. During this Investigation, you:

1. Measured the force of gravity of each load force.

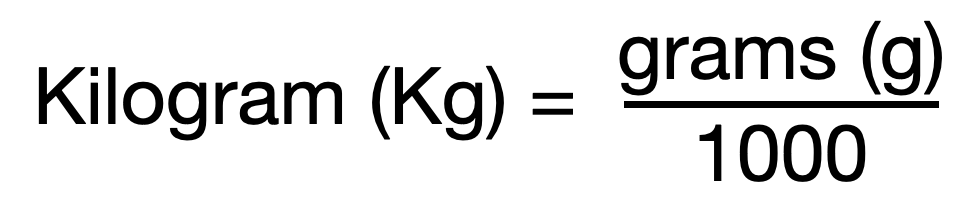

2. Converted mass in grams to kilograms using the following formula:

3. Calculated load force using the following formula:

4. Using a one-pulley system, measured the force in Newtons (N) to lift a load.

5. Determine the work done on the load and effort distance of the pulley for each load by using the following formula:
Work (J) = effort (N) x distance (load/effort) was applied (m)

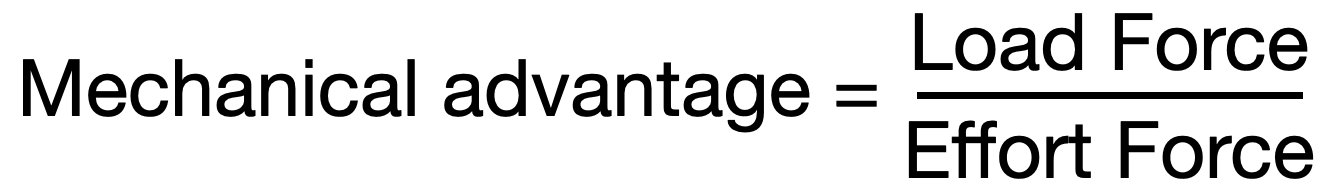

6. Calculated the mechanical advantage of each load by using the pulley system by using the following formula:

7. Using a two-pulley system, measured the force in Newtons (N) to life a load.

8. Repeated steps 5 and 6 above using date from the two-pulley system.

Investigation One Summary – Learning Goals

Through these experiments, you concluded that:

1. Simple machines can change the force needed to lift a load by offering a mechanical advantage. In a one-pulley system, the effort force required to lift the load is identical to the load force. Thus, there is no mechanical advantage in a one-pulley system. However, in a two-pulley system, the effort force is less than the load force. It takes roughly half the amount of force to lift the load. Thus, a two-pulley system has a mechanical advantage of 2. This is offset by the fact that in a two-pulley system, the distance over which the effort is applied is greater than the distance over which the effort is applied in a single-pulley system.

2. Mechanical advantage is the ratio of load force to effort force. If the load force is much greater than the effort force, then there will be a mechanical advantage.

Concept Slides

Launch and Discuss

Mathematics Concepts in This Investigation

  • (in)direct relationships
  • predict/verify results
  • mass in grams
  • measuring mass using a triple beam balance
  • metric conversion
  • decimals to nearest tenth and/or hundredth
  • addition
  • multiplication
  • measuring force in Newtons using spring scale
  • calculate work
  • manipulating mathematical formulas
  • comparing (non)measurable characteristics
